Q62702-A95 Datasheet - Siemens Semiconductor Group

Q62702-A95 Silicon Switching Diodes (High-speed/ high-voltage switch)

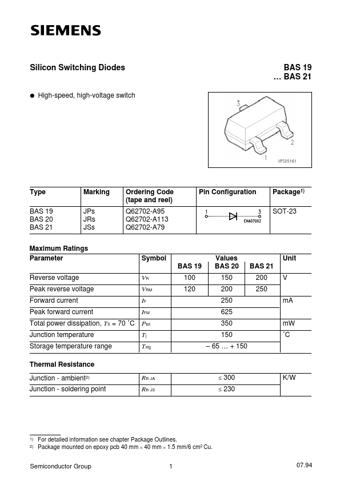

Silicon Switching Diodes BAS 19 … BAS 21 q High-speed, high-voltage switch Type BAS 19 BAS 20 BAS 21 Marking JPs JRs JSs Ordering Code (tape and reel) Q62702-A95 Q62702-A113 Q62702-A79 Pin Configuration Package1) SOT-23 Maximum Ratings Parameter Reverse voltage Peak reverse voltage Forward current Peak forward current Total power dissipation, TS = 70 ˚C Junction temperature Storage temperature range Thermal Resistance Junction - ambient2) Junction - soldering point Symbol BAS 19 VR VRM.

Q62702-A95_SiemensSemiconductorGroup.pdf

Q62702-A95 Datasheet Preview — Preview of Q62702-A95 PDF

Datasheet Details

Part number:

Q62702-A95

Manufacturer:

Siemens Semiconductor Group

File Size:

105.10 KB

Description:

Silicon switching diodes (high-speed/ high-voltage switch).
