Q62702-A990 - Silicon Schottky Diode (Low-power Schottky rectifier diode)

Product Overview

Siemens Semiconductor Group

Part number	Q62702-A990
Manufacturer	Siemens Semiconductor Group
File Size	149.87 KB
Description	Silicon Schottky Diode (Low-power Schottky rectifier diode)
Datasheet	Q62702-A990 Datasheet

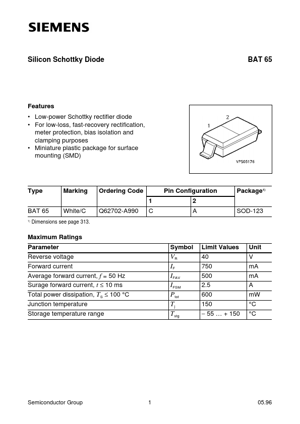

Additional preview pages of the Q62702-A990 datasheet.

Low-power Schottky rectifier diode.
For low-loss, fast-recovery rectification, meter protection, bias isolation and clamping purposes.
Miniature plastic package for surface mounting (SMD) Type BAT 65 1) Marking White/C Ordering Code 1 Q62702-A990 C Pin Configuration 2 A Package1) SOD-123 Dimensions see page 313. Maximum Ratings Parameter Reverse voltage Forward current Average forward current, f = 50 Hz Surage forward current, t ≤ 10 ms Total power dissipation,.
