Q62702-C1475 Datasheet - Siemens Semiconductor Group

Q62702-C1475 PNP Silicon Darlington Transistors (For general AF applications High collector current)

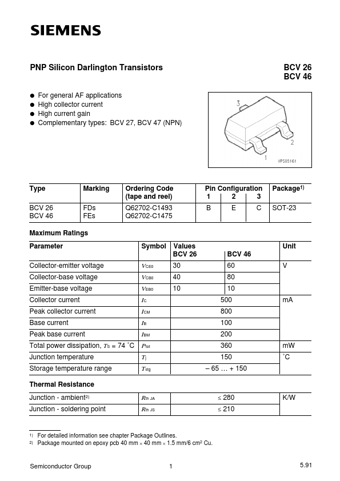

PNP Silicon Darlington Transistors BCV 26 BCV 46 For general AF applications q High collector current q High current gain q Complementary types: BCV 27, BCV 47 (NPN) q Type BCV 26 BCV 46 Marking FDs FEs Ordering Code (tape and reel) Q62702-C1493 Q62702-C1475 Pin Configuration 1 2 3 B E C Package1) SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current Base current Peak base current Total power dissip.

Q62702-C1475_SiemensSemiconductorGroup.pdf

Q62702-C1475 Datasheet Preview — Preview of Q62702-C1475 PDF

Datasheet Details

Part number:

Q62702-C1475

Manufacturer:

Siemens Semiconductor Group

File Size:

141.96 KB

Description:

Pnp silicon darlington transistors (for general af applications high collector current).
