Q62702-C2260 Datasheet - Siemens Semiconductor Group

Q62702-C2260 NPN Silicon Digital Transistor (Switching circuit/ inverter/ interface circuit/ driver circuit)

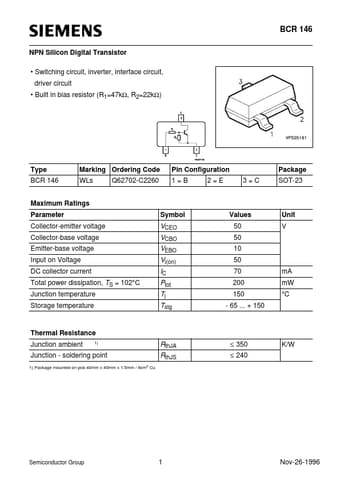

BCR 146 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=47kΩ, R2=22kΩ) Type BCR 146 Marking Ordering Code WLs Q62702-C2260 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 102°C Junction temperature Storage temperature Symbol Values 50 50 10 .

Q62702-C2260 Datasheet (35.38 KB)

Q62702-C2260 Datasheet Preview — Preview of Q62702-C2260 PDF

Datasheet Details

Part number:

Q62702-C2260

Manufacturer:

Siemens Semiconductor Group

File Size:

35.38 KB

Description:

Npn silicon digital transistor (switching circuit/ inverter/ interface circuit/ driver circuit).
