SAE800, Programmable Single-/Dual-/Triple- Tone Gong

Programmable Single-/Dual-/Triple- Tone Gong Preliminary Data SAE 800 Bipolar IC .
The SAE 800 is a single-tone, dual-tone or triple-tone gong IC designed for a very wide supply voltage range.

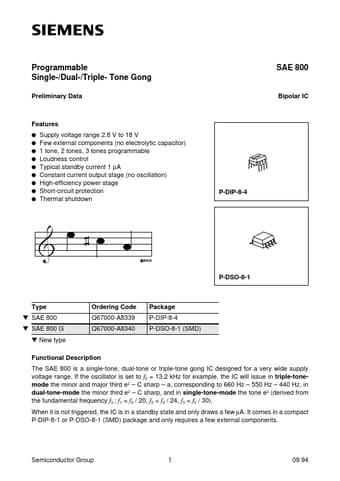

datasheet Preview Page 1 from Datasheet4u.com

SAE800_SiemensSemiconductorGroup.pdf

SAE800 Datasheet Preview — Preview of SAE800 PDF

Datasheet Details

Part number:

SAE800

Manufacturer:

Siemens Semiconductor Group

File Size:

0.96 MB

Description:

Programmable Single-/Dual-/Triple- Tone Gong

Features

* q q q q q q q q q Supply voltage range 2.8 V to 18 V Few external components (no electrolytic capacitor) 1 tone, 2 tones, 3 tones programmable Loudness control Typical standby current 1 µA Constant current output stage (no oscillation) High-efficiency power stage Short-circuit protection Thermal sh

Applications

* Resistor RL on pin L sets the output voltage swing. This assumes that the resistive component of the loudspeaker impedance RQ responds similarly as the resistance RL. The output amplitude of the current II reaches the maximum IImax ≅ 3 x VL / RL at a time t of 2.33 s (only 3 tone mode), so RL has t
