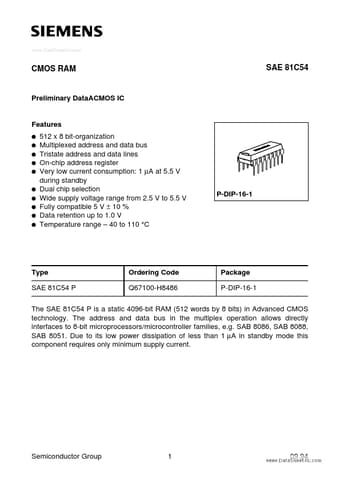

SAE81C54 - CMOS RAM

Siemens

Datasheet Details

q q q q q q q q q q 512 x 8 bit-organization Multiplexed address and data bus Tristate address and data lines On-chip address register Very low current consumption: 1 µA at 5.5 V during standby Dual chip selection Wide supply voltage range from 2.5 V to 5.5 V Fully compatible 5 V ± 10 % Data retention up to 1.0 V Temperature range.
40 to 110 °C P-DIP-16-1 Type SAE 81C54 P Ordering Code Q67100-H8486 Package P-DIP-16-1 The SAE 81C54 P is a static 4096-bit RAM (512 words by 8 bits) i.
