SAE800G

Programmable Single-/Dual-/Triple- Tone Gong

SAE800G Features

* q q q q q q q q q Supply voltage range 2.8 V to 18 V Few external components (no electrolytic capacitor) 1 tone, 2 tones, 3 tones programmable Loudness control Typical standby current 1 µA Constant current output stage (no oscillation) High-efficiency power stage Short-circuit protection Thermal sh

SAE800G General Description

The SAE 800 is a single-tone, dual-tone or triple-tone gong IC designed for a very wide supply voltage range. If the oscillator is set to f0 = 13.2 kHz for example, the IC will issue in triple-tonemode the minor and major third e2

* C sharp

* a, corresponding to 660 Hz

* 550 .

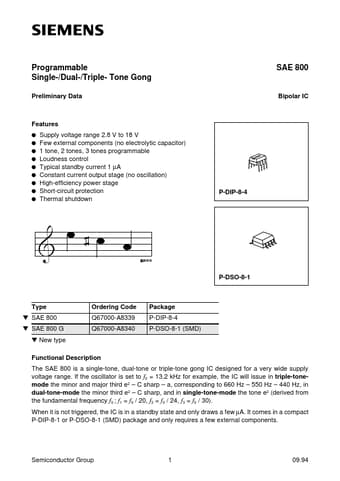

SAE800G Datasheet (0.96 MB)

Preview of SAE800G PDF

Datasheet Details

Part number:

SAE800G

Manufacturer:

Siemens Semiconductor Group

File Size:

0.96 MB

Description:

Programmable single-/dual-/triple- tone gong.
