SFH302 Datasheet - Siemens Semiconductor Group

SFH302 - NPN-Silizium-Fototransistor Silicon NPN Phototransistor

Betriebs- und Lagertemperatur Operating and storage temperature range Löttemperatur bei Tauchlötung Lötstelle ≥ 2 mm vom Gehäuse, Lötzeit t ≤ 5 s Dip soldering temperature ≥ 2 mm distance from case bottom, soldering time t ≤ 5 s Löttemperatur bei Kolbenlötung Lötstelle ≥ 2 mm vom Gehäuse, Lötzeit t

SFH302 Features

* q Especially suitable for applications from 450 nm to 1100 nm q High linearity q TO-18, base plate, transparent exposy resin lens, with base connection q Available in groups Applications q Photointerrupters q Industrial electronics q For control and drive circuits Typ Type SFH 302 SFH 302-2 SFH 302

SFH302_SiemensSemiconductorGroup.pdf

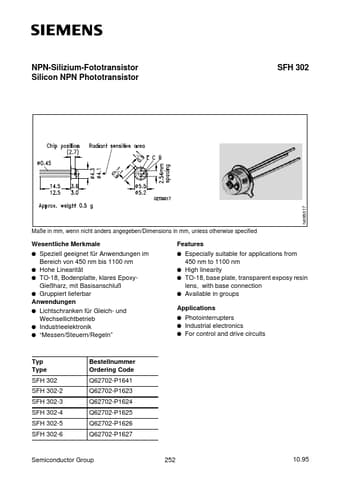

Preview of SFH302 PDF
SFH302 Datasheet Preview Page 2 SFH302 Datasheet Preview Page 3

Datasheet Details

Part number:

SFH302

Manufacturer:

Siemens Semiconductor Group

File Size:

207.10 KB

Description:

Npn-silizium-fototransistor silicon npn phototransistor.
