SCF5740

(SCF5740 - SCF5744) Dot Addressable Intelligent Display

SCF5740 Features

* DESCRIPTION The SCF574X is a four digit, dot addressable 5x7 dot matrix, serial input, alphanumeric Intelligent Display. The four digits are packaged in a rugged, high quality, optically transparent, plastic 22 pin DIP with 0.1” pin spacing. The on-board CMOS has a 140 bit RAM, one bit associated w

SCF5740 General Description

The SCF574X is a four digit, dot addressable 5x7 dot matrix, serial input, alphanumeric Intelligent Display. The four digits are packaged in a rugged, high quality, optically transparent, plastic 22 pin DIP with 0.1” pin spacing. The on-board CMOS has a 140 bit RAM, one bit associated with one LED, .

SCF5740 Datasheet (117.67 KB)

Preview of SCF5740 PDF

Datasheet Details

Part number:

SCF5740

Manufacturer:

Siemens Semiconductor

File Size:

117.67 KB

Description:

(scf5740 - scf5744) dot addressable intelligent display.

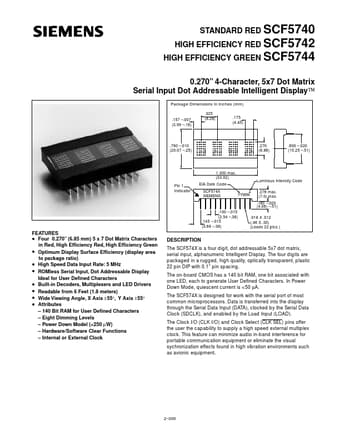

www.DataSheet4U.com STANDARD RED SCF5740 HIGH EFFICIENCY RED SCF5742 HIGH EFFICIENCY GREEN SCF5744 0.270” 4-Character, 5x7 Dot Matrix Serial Input Do.
