SCF5744, SCF5740 Datasheet - Siemens Semiconductor

SCF5744 (SCF5740 - SCF5744) Dot Addressable Intelligent Display

The SCF574X is a four digit, dot addressable 5x7 dot matrix, serial input, alphanumeric Intelligent Display. The four digits are packaged in a rugged, high quality, optically transparent, plastic 22 pin DIP with 0.1” pin spacing. The on-board CMOS has a 140 bit RAM, one bit associated with one LED, .
www.DataSheet4U.com STANDARD RED SCF5740 HIGH EFFICIENCY RED SCF5742 HIGH EFFICIENCY GREEN SCF5744 0.270” 4-Character, 5x7 Dot Matrix Serial Input Dot Addressable Intelligent Display™ Package Dimensions in Inches (mm) .325 (8.26) .175 (4.45) .157 .007 (3.99 .18) .790 .010 (20.07 .25) .270 (6.86) .600 .020 (15.25 .51) 1.300 max. (33.02) Pin 1 Indicator EIA Date Code SCF574X SIEMENS Z YYWW Luminous Intensity Code .276 max. (7.0) max. .16.

SCF5740_SiemensSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SCF5744, SCF5740. Please refer to the document for exact specifications by model.

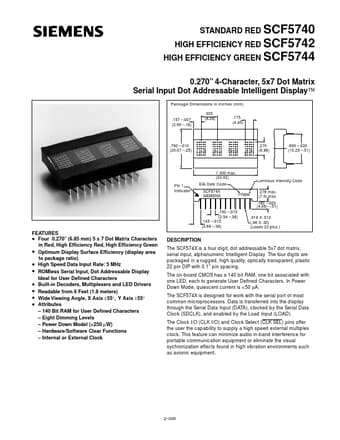

SCF5744 Datasheet Preview Page 2 SCF5744 Datasheet Preview Page 3
