SXTA92 Datasheet (Siemens Semiconductor) - (SXTA92 / SXTA93) PNP Silicon High Voltage Transistors

SXTA92, (SXTA92 / SXTA93) PNP Silicon High Voltage Transistors

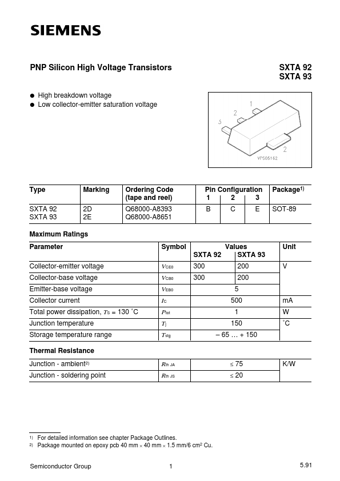

PNP Silicon High Voltage Transistors SXTA 92 SXTA 93 High breakdown voltage q Low collector-emitter saturation voltage q Type SXTA 92 SXTA 93 Marking 2D 2E Ordering Code (tape and reel) Q68000-A8393 Q68000-A8651 Pin Configuration 1 2 3 B C E Package1) SOT-89 Maximum Ratings www.DataSheet4U.com Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Total power dissipation, TS = 130 ˚C Junction temperature Storage temperature range Thermal Resist
