TDA4700 - Switched-Mode Power Supplies

Product Overview

Siemens Semiconductor

Part number	TDA4700
Manufacturer	Siemens Semiconductor
File Size	436.25 KB
Description	Switched-Mode Power Supplies
Datasheet	TDA4700 Datasheet
Additional preview pages of the TDA4700 datasheet.

Voltage Controlled Oscillator (VCO) The VCO generates a sawtooth voltage.

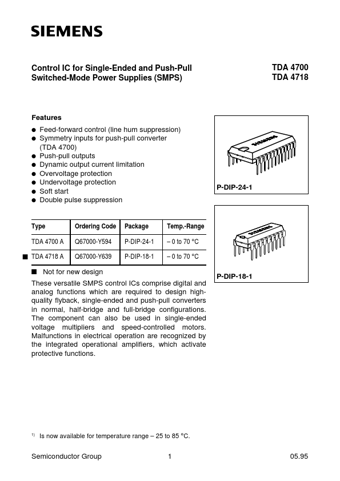

q q q q q q q q Feed-forward control (line hum suppression) Symmetry inputs for push-pull converter (TDA 4700) Push-pull outputs Dynamic output current limitation Overvoltage protection Undervoltage protection Soft start Double pulse suppression P-DIP-24-1 Type TDA 4700 A s TDA 4718 A Ordering Code Q67000-Y594 Q67000-Y639 Package P-DIP-24-1 P-DIP-18-1 Temp. -Range.
0 to 70 °C.
0 to 70 °C P-DIP-18-1 s Not for new design These versatile SMPS control ICs comprise digital and.
