TDA4718A Control IC

TDA4718A Description

Control IC for Single-Ended and Push-Pull Switched-Mode Power Supplies (SMPS) TDA 4718 A .

TDA4718A Features

* q Feed-forward control (line hum suppression) q Push-pull outputs q Dynamic output current limitation q Overvoltage protection q Undervoltage protection q Soft start q Double pulse suppression P-DIP-18-1 Type Ordering Code Package Temp. -Range w TDA 4718 A Q67000-Y639 P-DIP-18-1
* 25

📥 Download Datasheet

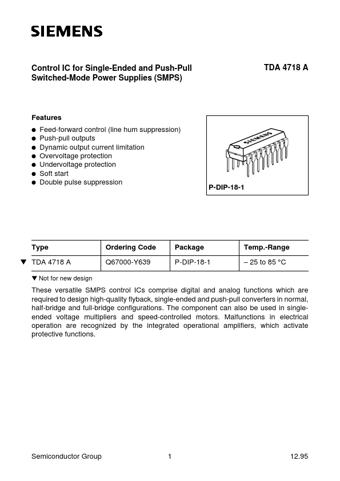

Preview of TDA4718A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA4718A
Manufacturer
Siemens
File Size
261.03 KB
Datasheet
TDA4718A-Siemens.pdf
Description
Control IC
