TDA4714C

Switched-Mode Power Supplies

TDA4714C Features

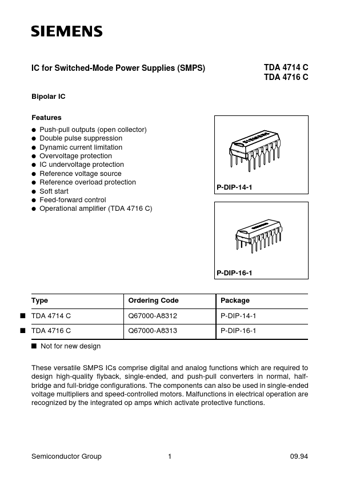

* q q q q q q q q q q Push-pull outputs (open collector) Double pulse suppression Dynamic current limitation Overvoltage protection IC undervoltage protection Reference voltage source Reference overload protection Soft start Feed-forward control Operational amplifier (TDA 4716 C) P-DIP-14-1 P-DIP-1

TDA4714C General Description

The following is a description of the individual functional units and their interaction. Voltage Controlled Oscillator (VCO) The VCO generates a sawtooth voltage. The duration of the falling edge is determined by the value of CT. The duration of the rising edge of the waveform and, therefore, approx.

TDA4714C Datasheet (388.34 KB)

Preview of TDA4714C PDF

Datasheet Details

Part number:

TDA4714C

Manufacturer:

Siemens Semiconductor

File Size:

388.34 KB

Description:

Switched-mode power supplies.
