HYM72V4005GS-50- 4M x 72-Bit EDO-DRAM Module

3.3V 50ns EDO-DRAM module 3.3V 60ns EDO-DRAM module 3.3V 50ns EDO-DRAM module 3.3V 60ns EDO-DRAM module HYM 72V4005/15GS-50 Vss HYM 72V4005/15GS-60 Vss Note: 1 = High Level ( Driver Output) , 0 = Low Level (Driver Output) for PDE active ( ground) . For PDE at a high level all PD terminal are in t.

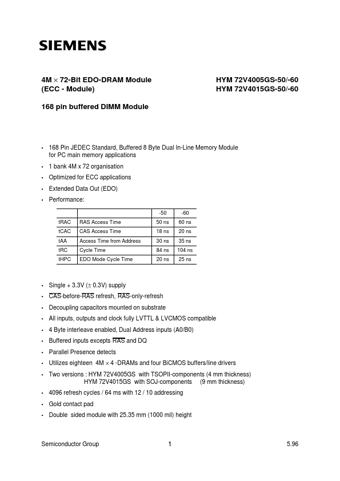

4M × 72-Bit EDO-DRAM Module (ECC - Module) 168 pin buffered DIMM Module HYM 72V4005GS-50/-60 HYM 72V4015GS-50/-60 168 Pin JEDEC Standard, Buffered 8 Byte Dual In-Line Memory Module for PC main memory applications 1 bank 4M x 72 organisation Optimized for ECC applications Extended Data Out (EDO) Performance: -50 tRAC tCAC tAA tRC tHPC RAS Access Time CAS Access Time Access Time from Address Cycle Time EDO Mode Cycle Time 50 ns 18 ns 30 ns 84 ns 20 ns -60 60 ns 20 ns 35 ns 104 ns 25 n.
