SDA9205-2 Datasheet, Analog-to-digital-converter, Siemens

SDA9205-2 Features

  • Analog-to-digital-converter Three equivalent CMOS A/D converters on chip 30-MHz sample rate 8-bit resolution No external sample & hold required On-chip input buffer for each analog channel Internal clamping circui

PDF File Details

Part number:

SDA9205-2

Manufacturer:

Siemens

File Size:

567.52kb

Download:

📄 Datasheet

Description:

Triple 8-bit analog-to-digital-converter. Ordering Code Q67100-H5069 Package P-LCC-68-1 (SMD) The SDA 9205-2 is a single monolithic IC containing three separate 8-bit analo

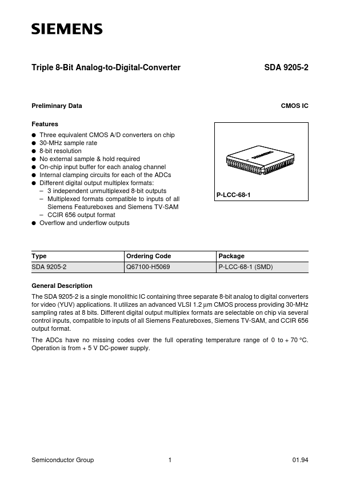

Datasheet Preview: SDA9205-2 📥 Download PDF (567.52kb)
Page 2 of SDA9205-2 Page 3 of SDA9205-2

SDA9205-2 Application

  • Applications It utilizes an advanced VLSI 1.2 µm CMOS process providing 30-MHz sampling rates at 8 bits. Different digital output multiplex formats
