SDA9253

2.6 MBit Dynamic Sequential Access Memory for Television Applications (TV-SAM)

Siemens

SDA9253 Features

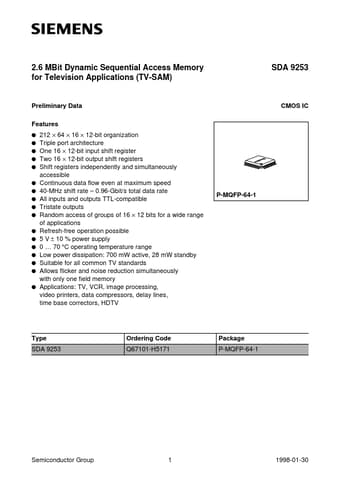

* q q q q q q q q q q q q q q q q q CMOS IC 212 × 64 × 16 × 12-bit organization Triple port architecture One 16 × 12-bit input shift register Two 16 × 12-bit output shift registers Shift registers independently and simultaneously accessible Continuous data flow even at maximum speed 40-MHz shift rat

SDA9253 General Description

The SDA 9253 is a triple port 2605056 bit dynamic sequential-access memory for high-data-rate video applications. It is organized as 212 rows by 64 columns by 16 arrays by 12 bit to allow for the storage of 12-bit planes of a TV field (NTSC, PAL, SECAM, MAC) in standard or studio quality (13.5-MHz b.

SDA9253 Datasheet (174.66 KB)

SDA9253 Datasheet Preview — Preview of SDA9253 PDF

Datasheet Details

Part number:

SDA9253

Manufacturer:

Siemens

File Size:

174.66 KB

Description:

2.6 mbit dynamic sequential access memory for television applications (tv-sam).
