SDA9254-2

2.6 MBit Dynamic Sequential Access Memory for Television Applications (TV-SAM) with On-chip Noise Reduction Filter

SDA9254-2 Features

* q q q q q q q q q SDA 9254-2 CMOS IC q q q q q q q q q q q q Stores a complete video field (4:1:1) On chip adaptive recursive noise reduction filter (4:1:1) 4 noise reduction classes selectable Special noise reduction mode for 4:2:2 applications 212 × 64 × 16 × 12-bit organization Triple port ar

SDA9254-2 General Description

General The SDA 9254-2 is a combination of the TV-SAM SDA 9253 and an adaptive recursive filter to achieve a reduction of noise for video signals. To get a closed loop one of the two output ports of the triple port memory is connected internally to the noise reduction filter. External access to this.

SDA9254-2 Datasheet (183.66 KB)

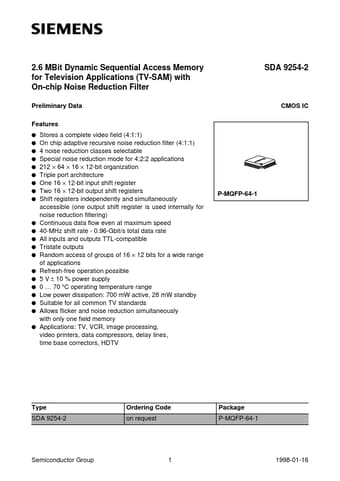

Preview of SDA9254-2 PDF

Datasheet Details

Part number:

SDA9254-2

Manufacturer:

Siemens

File Size:

183.66 KB

Description:

2.6 mbit dynamic sequential access memory for television applications (tv-sam) with on-chip noise reduction filter.
