T70L5D131-5, T70L5D164-5 (T70 Series) 10 Amp Printed Circuit Board Relay

T70L5D131-5 Description

For new designs refer to T72.T70 series Low Cost, 10 Amp Printed Circuit Board Relay File E29244 File LR15734 .

T70L5D131-5 Features

* 10 amp switching in SPDT arrangement.
* Choice of gold flashed silver or silver cadmium oxide contacts.
* Class B coil insulation (130°C).
* Immersion cleanable
* , plastic sealed case.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: T70L5D131-5, T70L5D164-5. Please refer to the document for exact specifications by model.

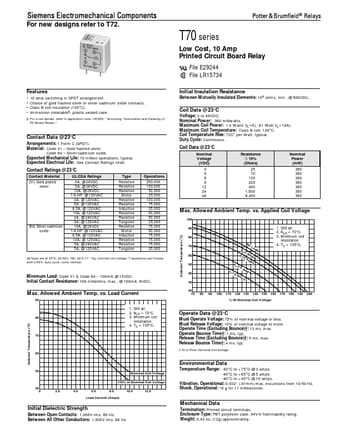

datasheet Preview Page 2

Datasheet Details

Part number
T70L5D131-5, T70L5D164-5
Manufacturer
Siemens
File Size
118.89 KB
Datasheet
T70L5D164-5_Siemens.pdf
Description
(T70 Series) 10 Amp Printed Circuit Board Relay
Note
This datasheet PDF includes multiple part numbers: T70L5D131-5, T70L5D164-5.
Please refer to the document for exact specifications by model.
