T70HF10, T70HF Datasheet - Vishay

T70HF10 Power Rectifier Diodes

These series of T-modules use standard recovery power rectifier diodes. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assembly to be built. Applications include power supplies, battery charges, welders, motor controls and general i.

T70HF10 Features

* Electrically isolated base plate

* Types up to 1200 VRRM

* 3500 VRMS isolating voltage

* Simplified mechanical designs, rapid assembly

* High surge capability

* Large creepage distances

* UL E78996 approved

* Compliant to RoHS directi

T70HF-Vishay.pdf

This datasheet PDF includes multiple part numbers: T70HF10, T70HF. Please refer to the document for exact specifications by model.

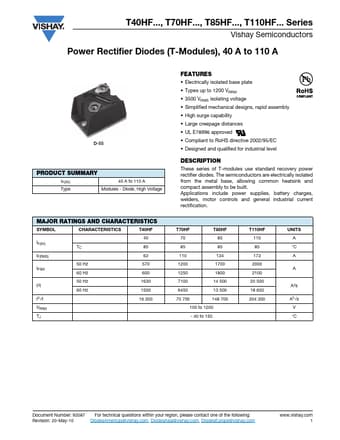

T70HF10 Datasheet Preview Page 2 T70HF10 Datasheet Preview Page 3

Datasheet Details

Part number:

T70HF10, T70HF

Manufacturer:

Vishay ↗

File Size:

287.81 KB

Description:

Power rectifier diodes.

Note:

This datasheet PDF includes multiple part numbers: T70HF10, T70HF.
Please refer to the document for exact specifications by model.
