T70HFL40 Datasheet - Vishay

Fast Recovery Diodes

T70HFL40 Features

* Fast recovery time characteristics

* Electrically isolated base plate

* 3500 VRMS isolating voltage

* Standard JEDEC package

* Simplified mechanical designs, rapid assembly

* Large creepage distances

* UL E78996 approved

* Compliant t

T70HFL40 General Description

The series of T-modules uses fast recovery power diodes in a single diode configuration. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assemblies to be built. These single diode modules can be used in conjunction with the thyristor modules as .

T70HFL40 Datasheet (418.86 KB)

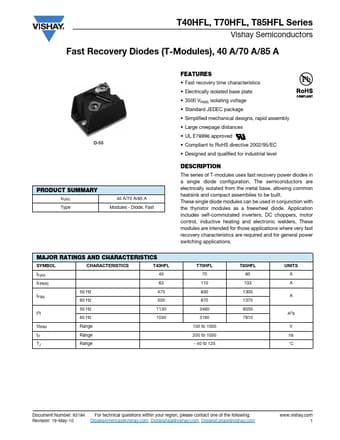

T70HFL40 Datasheet Preview — Preview of T70HFL40 PDF

Datasheet Details

Part number:

T70HFL40

Manufacturer:

Vishay ↗

File Size:

418.86 KB

Description:

Fast recovery diodes.
T40HFL, T70HFL, T85HFL Series Vishay Semiconductors Fast Recovery Diodes (T-Modules), 40 A/70 A/85 A D-55 PRODUCT SUMMARY IF(AV) Type 40 A/70 A/85 .
