T70HF - Power Rectifier Diodes

T70HF Description

T40HF, T70HF, T85HF, T110HF Series Vishay Semiconductors Power Rectifier Diodes (T-Modules), 40 A to 110 A D-55 PRODUCT SUMMARY IF(AV) 40 A to 110.
These series of T-modules use standard recovery power rectifier diodes.

T70HF Features

* Electrically isolated base plate
* Types up to 1200 VRRM
* 3500 VRMS isolating voltage
* Simplified mechanical designs, rapid assembly
* High surge capability
* Large creepage distances
* UL E78996 approved
* Compliant to RoHS directi

T70HF Applications

* include power supplies, battery charges, welders, motor controls and general industrial current rectification. T70HF T85HF 70 85 85 85 110 134 1200 1700 1250 1800 7100 14 500 6450 13 500 70 700 148 700 100 to 1200 - 40 to 150 T110HF 110 85 173 2000 2100 20 500 18 600 204 300 UNITS

📥 Download Datasheet

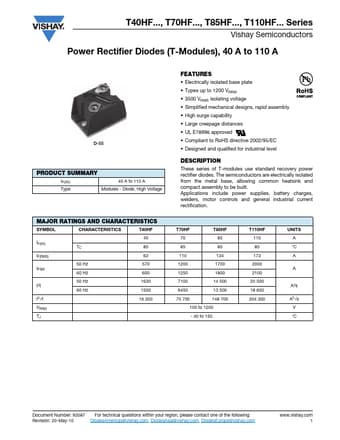

Preview of T70HF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
T70HF
Manufacturer
Vishay ↗
File Size
287.81 KB
Datasheet
T70HF-Vishay.pdf
Description
Power Rectifier Diodes
