T70HFL20

Fast Recovery Diodes

Vishay

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Vishay Semiconductors	VS-T70HFL20S02	DIODE STANDARD 200V 70A D55	DigiKey	19	100 units	$19.09	🛒 Buy Now

T70HFL20 Datasheet (418.86 KB)

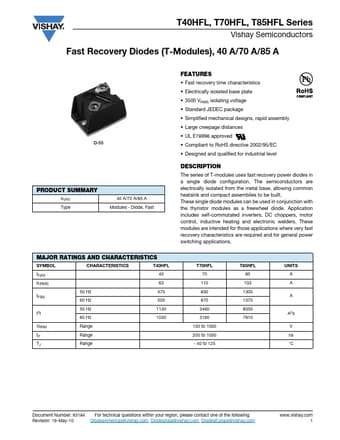

T70HFL20 Datasheet Preview — Preview of T70HFL20 PDF Datasheet

Datasheet Details

Part number:

T70HFL20

Manufacturer:

Vishay ↗

File Size:

418.86 KB

Description:

Fast recovery diodes

T70HFL20 Features

* Fast recovery time characteristics

* Electrically isolated base plate

* 3500 VRMS isolating voltage

* Standard JEDEC package

* Simplified mechanical designs, rapid assembly

* Large creepage distances

* UL E78996 approved

* Compliant t

T70HFL20 General Description

The series of T-modules uses fast recovery power diodes in a single diode configuration. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assemblies to be built. These single diode modules can be used in conjunction with the thyristor modules as .
