SC74HC595A, SC74HC595, 8BIT SHIFT REGISTER

SC74HC595 8-BIT SHIFT REGISTER (SERIAL INPUT, 3S PARALLEL OUTPUT WITH LATCHES) .
SC74HC595 utilizes advanced CMOS technology, and has 8-bit shift register with serial input, serial/parallel output and 8bit tri-state output flip-l.

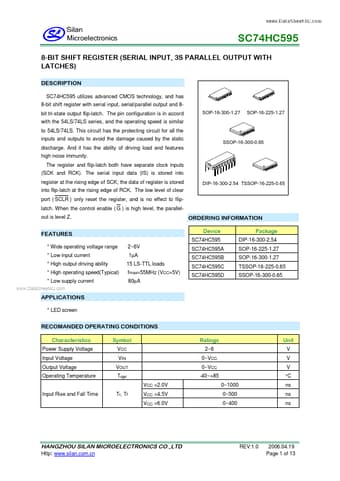

datasheet Preview Page 1 from Datasheet4u.com

SC74HC595_SilanMicroelectronics.pdf

SC74HC595A Datasheet Preview — This datasheet PDF includes multiple part numbers: SC74HC595A, SC74HC595. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SC74HC595A, SC74HC595

Manufacturer:

Silan Microelectronics

File Size:

301.42 KB

Description:

8BIT SHIFT REGISTER

Note:

This datasheet PDF includes multiple part numbers: SC74HC595A, SC74HC595.
Please refer to the document for exact specifications by model.

Features

* SSOP-16-300-0.65 high noise immunity. The register and flip-latch both have separate clock inputs (SCK and RCK). The serial input data (IS) is stored into register at the rising edge of SCK; the data of register is stored into flip-latch at the rising edge of RCK. The low level of clear DIP-16
