SC74HC595C - 8BIT SHIFT REGISTER

SC74HC595 utilizes advanced CMOS technology, and has 8-bit shift register with serial input, serial/parallel output and 8bit tri-state output flip-latch. The pin configuration is in accord SOP-16-300-1.27 SOP-16-225-1.27 with the 54LS/74LS series, and the operating speed is similar to 54LS/74LS.

SC74HC595C Features

* SSOP-16-300-0.65 high noise immunity. The register and flip-latch both have separate clock inputs (SCK and RCK). The serial input data (IS) is stored into register at the rising edge of SCK; the data of register is stored into flip-latch at the rising edge of RCK. The low level of clear DIP-16

SC74HC595_SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SC74HC595C, SC74HC595. Please refer to the document for exact specifications by model.

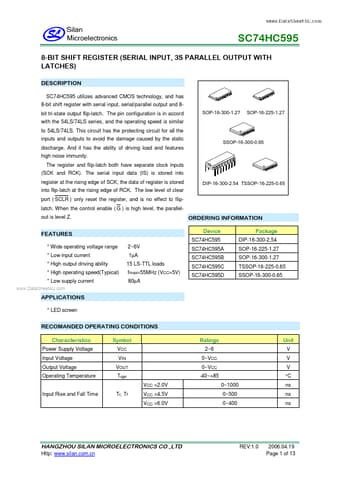

SC74HC595C Datasheet Preview Page 2 SC74HC595C Datasheet Preview Page 3
