SC7422S

2CH AUDIO POWER AMPLIFIER

SC7422S Features

* Operation voltage : 5V

* Output power : 2W×2(RL=4 )

* Low harmonics distortion (THD=0.03%)

* 32 steps volume control with 1.5dB per step from -45dB to 0dB

* Two output modes (SE and BTL) switched

* Low quiescent operation current

* No POPO noise when turn on/off

* S

SC7422S General Description

The SC7422 is a class AB power amplifier which designed for dual audio purpose. It can deliver 2W × 2 power output to the 4 load in the 5V operation voltage. Total harmonic distortion is lower than 0.03%. The output mode can be switched between the SE and BTL mode. The volume also can be changed by.

SC7422S Datasheet (200.54 KB)

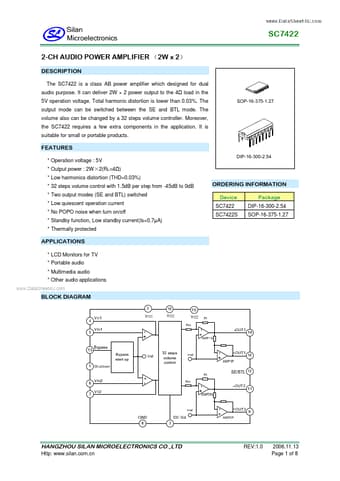

Preview of SC7422S PDF

Datasheet Details

Part number:

SC7422S

Manufacturer:

Silan Microelectronics

File Size:

200.54 KB

Description:

2ch audio power amplifier.
