SC7461 - INFRARED REMOTE CONTROL TRANSMITTER

Datasheet Summary

Description

The SC7461 is a remote control transmitter utilizing CMOS Technology specially designed for infrared applications.

It is capable of controlling 32 function keys and 3 double keys.

SC7461 is housed in 24 pins, SO Package and provides 13 bits Custom Code.

Features

  • CMOS Technology.
  • Low Power Consumption.
  • 32+3 Function Keys.
  • Least External Components.
  • Wide range of operating voltage: VDD=2.0~5.5V.
  • Double key operation(No order of priority given).
  • On-Chip Oscillator can be constructed using an externally connected ceramic resonator.
  • Up to 64 Custom Codes may be selected externally for SC7461 SOP-24-375-1.27.

📥 Download Datasheet

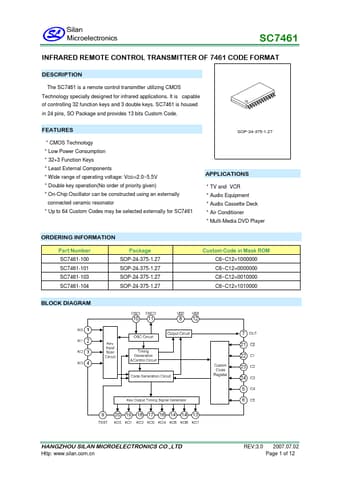

Datasheet preview – SC7461
