SC9307P

Audio System Control MCU

SC9307P Features

* (Note)

* Memory 384-byte data memory 8K-byte program memory (OTP)

* I/O configuration 34 general-purpose I/O, 18 of which can be connected to pull-up resistor, open-drain output available. www.DataSheet4U.com

* 8-bit timer/counter T0/T1/T2

* Clock source External clock source: 75KHz

SC9307P General Description

SC9307P is a SOC based on Silan’ s 8-bit MCU SC65PX for analog radio DFR control with low power dissipation. Built-in LCD driver which can drive 34 configurable I/O ports and three 8-bit counters, two of which can be combined to achieve 16 timing length; Built-in real time clock ensures the system u.

SC9307P Datasheet (250.25 KB)

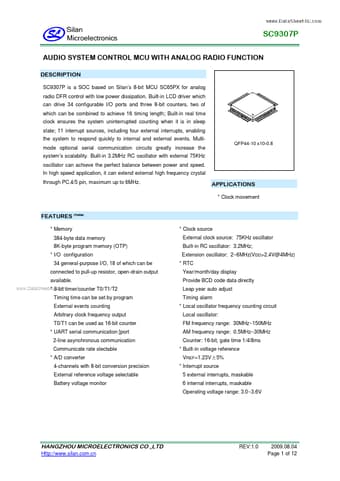

Preview of SC9307P PDF

Datasheet Details

Part number:

SC9307P

Manufacturer:

Silan Microelectronics

File Size:

250.25 KB

Description:

Audio system control mcu.
