SDM06C60TA2 - 600V/6A 3-PHASE FULL-BRIDGE DRIVER

Datasheet Summary

Description

SDM06C60TA2 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as fan, pump and refrigerator.

It has embedded six low-loss IGBTs and 3-phase half-bridge gate drivers with high voltage.

Features

  • 3.

📥 Download Datasheet

Datasheet preview – SDM06C60TA2

Datasheet Details

Part number SDM06C60TA2
Manufacturer Silan Microelectronics
File Size 142.28 KB
Description 600V/6A 3-PHASE FULL-BRIDGE DRIVER
Datasheet download datasheet SDM06C60TA2 Datasheet

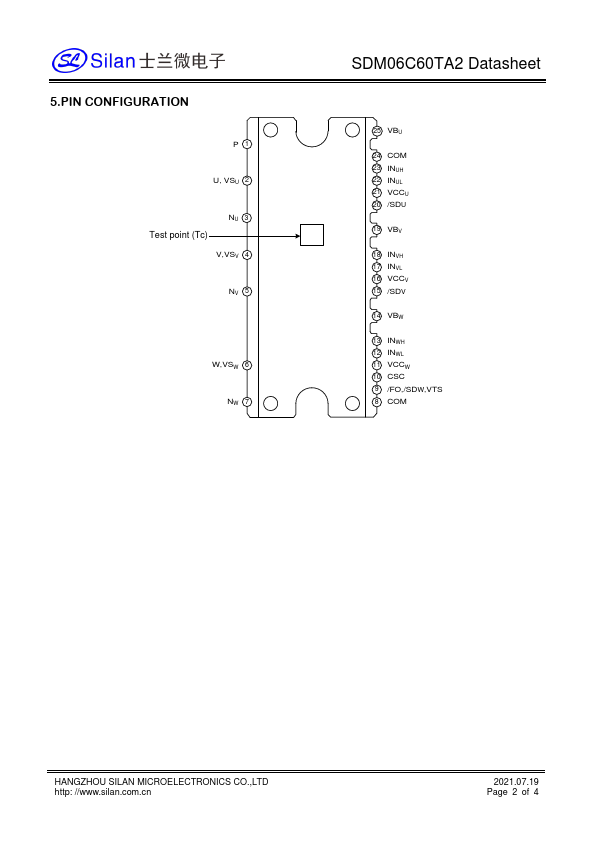

Additional preview pages of the SDM06C60TA2 datasheet.

📁 Similar Datasheet

  • SDM0230CSP - 0.2A SCHOTTKY BARRIER DIODE (Diodes)
  • SDM029N06D - 60V N-Channel MOSFET (YUHONG)
  • SDM02M30LP3 - ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE (Diodes)
  • SDM02U30CSP - SCHOTTKY BARRIER DIODE (Diodes)
  • SDM02U30LP3 - ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE (Diodes)
  • SDM03C60DA2 - 600V/3A 3-PHASE FULL-BRIDGE DRIVER (Silan Semiconductors)
  • SDM03MT40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes Incorporated)
  • SDM03MT40A - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes Incorporated)
  • SDM03U40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Sunmate)
  • SDM03U40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (DIODES)
Other Datasheets by Silan Microelectronics

Full PDF Text Transcription

Click to expand full text

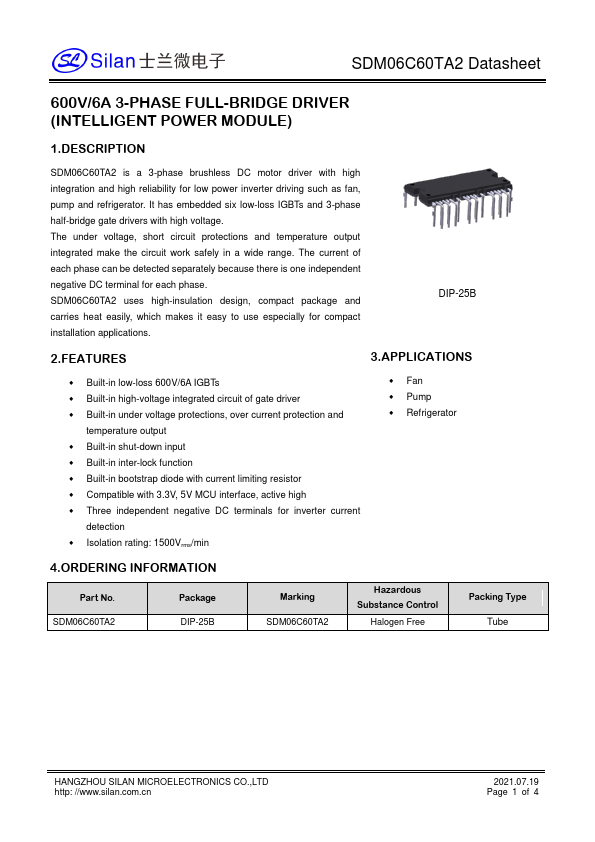

SDM06C60TA2 Datasheet 600V/6A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE) 1.DESCRIPTION SDM06C60TA2 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as fan, pump and refrigerator. It has embedded six low-loss IGBTs and 3-phase half-bridge gate drivers with high voltage. The under voltage, short circuit protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase. SDM06C60TA2 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications. DIP-25B 2.FEATURES 3.
