SFR05S40E

400V SUPER-FAST RECOVERY RECTIFIER

Silan Microelectronics

SFR05S40E Features

* ∗ Ultrafast 35 Nanosecond Recovery Time ∗ Low Forward Voltage Drop ∗ Low Leakage Current ∗ 150 °C Operating Junction Temperature NOMENCLATURE ORDERING INFORMATION Part No. SFR05S40E SFR05S40ETR Package DO-201AD DO-201AD Marking SFR05S40E SFR05S40E Material Pb free Pb free Packing Bulk AMMO HA

SFR05S40E General Description

SFR05S40E is a Super-Fast Recovery Diode, fabricated in advanced silicon planar epitaxial technology. The process parameter and the device structure are fine tuned with optimized performance of forward voltage drop and reverse recovery time. Accuracy epitaxial dope control, advanced planar junction .

SFR05S40E Datasheet (196.30 KB)

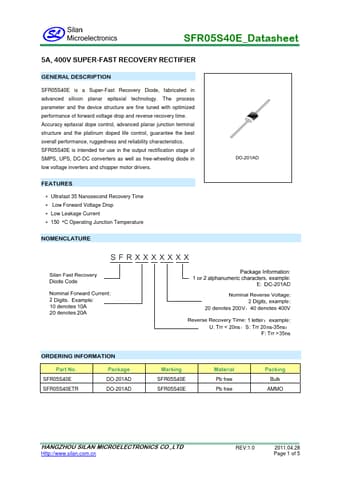

SFR05S40E Datasheet Preview — Preview of SFR05S40E PDF

Datasheet Details

Part number:

SFR05S40E

Manufacturer:

Silan Microelectronics

File Size:

196.30 KB

Description:

400v super-fast recovery rectifier.
