SFR08S60T2

600V SUPER-FAST RECOVERY RECTIFIER

Silan Microelectronics

SFR08S60T2 Features

* ∗ Ultrafast 35 Nanosecond Recovery Time ∗ Low Forward Voltage Drop ∗ Low Leakage Current ∗ 150°C Operating Junction Temperature NOMENCLATURE ORDERING INFORMATION Part No. SFR08S60T2 SFR08S60F2 SFR08S60D SFR08S60DTR Package Type TO-220-2L TO-220F-2L TO-252-2L TO-252-2L Marking SFR08S60T2 SFR08S60

SFR08S60T2 General Description

SFR08S60T2/F2/D is a Super-Fast Recovery Diode, fabricated in advanced silicon planar epitaxial technology. The process parameter and the device structure are fine tuned with optimized performance of forward voltage drop and reverse recovery time. Accuracy epitaxial dope control, advanced planar jun.

SFR08S60T2 Datasheet (326.47 KB)

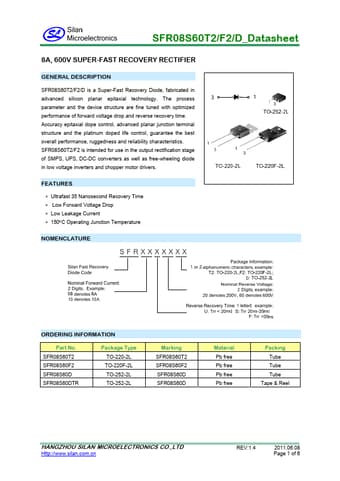

SFR08S60T2 Datasheet Preview — Preview of SFR08S60T2 PDF

Datasheet Details

Part number:

SFR08S60T2

Manufacturer:

Silan Microelectronics

File Size:

326.47 KB

Description:

600v super-fast recovery rectifier.
