SFR08S60F2, SFR08S60T2 Datasheet - Silan Microelectronics

SFR08S60F2 600V SUPER-FAST RECOVERY RECTIFIER

SFR08S60T2/F2/D is a Super-Fast Recovery Diode, fabricated in advanced silicon planar epitaxial technology. The process parameter and the device structure are fine tuned with optimized performance of forward voltage drop and reverse recovery time. Accuracy epitaxial dope control, advanced planar jun.

SFR08S60F2 Features

* ∗ Ultrafast 35 Nanosecond Recovery Time ∗ Low Forward Voltage Drop ∗ Low Leakage Current ∗ 150°C Operating Junction Temperature NOMENCLATURE ORDERING INFORMATION Part No. SFR08S60T2 SFR08S60F2 SFR08S60D SFR08S60DTR Package Type TO-220-2L TO-220F-2L TO-252-2L TO-252-2L Marking SFR08S60T2 SFR08S60

SFR08S60T2-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SFR08S60F2, SFR08S60T2. Please refer to the document for exact specifications by model.

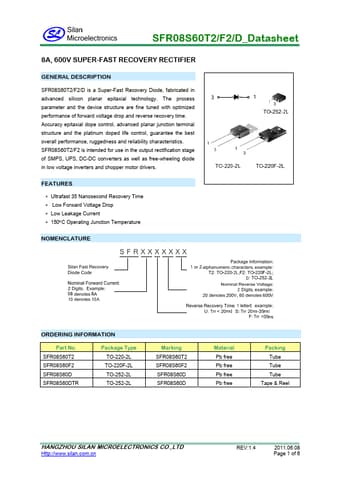

SFR08S60F2 Datasheet Preview Page 2 SFR08S60F2 Datasheet Preview Page 3

Datasheet Details

Part number:

SFR08S60F2, SFR08S60T2

Manufacturer:

Silan Microelectronics

File Size:

326.47 KB

Description:

600v super-fast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: SFR08S60F2, SFR08S60T2.
Please refer to the document for exact specifications by model.
