SVT077R5NS, SVT077R5NT - N-CHANNEL MOSFET

Silan Microelectronics

Datasheet Details

Part number	SVT077R5NS, SVT077R5NT
Manufacturer	Silan Microelectronics
File Size	331.58 KB
Description	N-CHANNEL MOSFET
Datasheet	SVT077R5NT-SilanMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SVT077R5NS, SVT077R5NT. Please refer to the document for exact specifications by model.

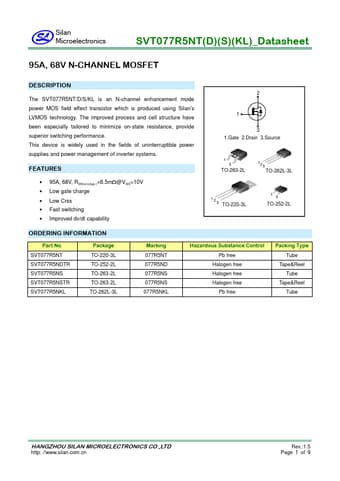

The SVT077R5NT/D/S/KL is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.

95A, 68V, RDS(on)(typ. )=6.5m@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability 2 1 3 1.Gate 2.Drain 3.Source 1 3 TO-263-2L 123 TO-262L-3L 1 2 3 TO-220-3L 13 TO-252-2L.
