SVT03100ND

30V N-CHANNEL MOSFET

SVT03100ND Features

* 60A, 30V, RDS(on)(typ.)=8.5m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE 2 1 3 1.Gate 2.Drain 3.Source 1 3 TO-252-2L S V TX X X R X N X Silan Low voltage trench MOS products Nominal voltage, using 2 digits; Example: 04 deno

SVT03100ND General Description

SVT03100ND is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and withstand high energy puls.

SVT03100ND Datasheet (306.08 KB)

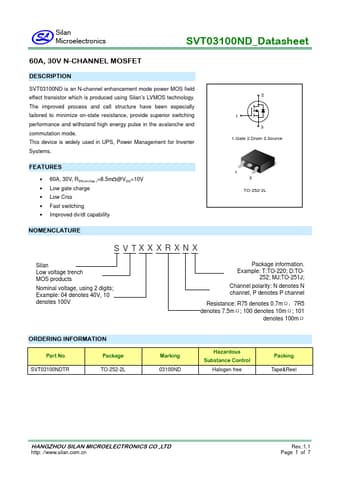

Preview of SVT03100ND PDF

Datasheet Details

Part number:

SVT03100ND

Manufacturer:

Silan Microelectronics

File Size:

306.08 KB

Description:

30v n-channel mosfet.
