SVT10100UB - EXTREME LOW VF SCHOTTKY BARRIER RECTIFIER

Pan Jit International

📥 Download Datasheet

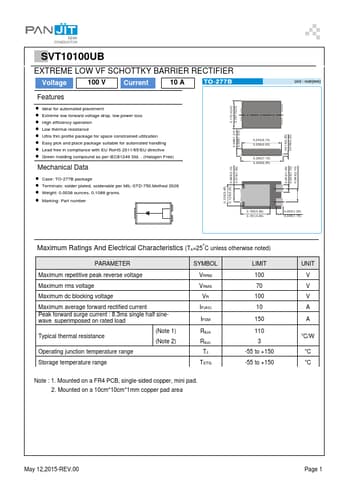

SVT10100UB Datasheet Preview — Preview of SVT10100UB PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SVT10100UB
Manufacturer	Pan Jit International
File Size	215.09 KB
Description	EXTREME LOW VF SCHOTTKY BARRIER RECTIFIER
Datasheet	SVT10100UB-PanJitInternational.pdf

SVT10100UB Product details

Features

Ideal for automated placement.
Extreme low forward voltage drop, low power loss.
High efficiency operation.
Low thermal resistance.
Ultra thin profile package for space constrained utilization.
Easy pick and place package suitable for automated handling.
Lead free in compliance with EU RoHS 2011/65/EU directive.
Green molding compound as per IEC61249 Std. . (Halogen Free) Mechanical Data.
Case: TO-277B package.
Terminals: solder plated, solderab.
