SVT1040SA Datasheet - Silan Microelectronics

N-CHANNEL MOSFET

SVT1040SA Features

* 10A, 40V, RDS(on)(typ.)=15m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 78 56 2 4 1 1、3. Source 3 2、4. Gate 7、8；5、6. Drain 8 1 23 4 SOP-8-225-1.27 ORDERING INFORMATION Part No. SVT1040SA SVT1040SATR Package SOP-8-225-1.27 SOP-8-

SVT1040SA General Description

SVT1040SA is an N-channel enhancement mode power MOS field effect transistor which is produced using Trench Mos technology. The improved trench stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior switching performance, and .

SVT1040SA Datasheet (278.93 KB)

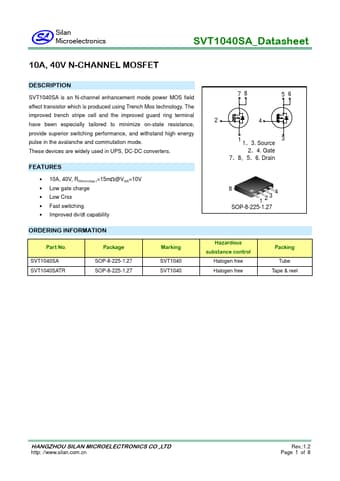

SVT1040SA Datasheet Preview — Preview of SVT1040SA PDF

Datasheet Details

Part number:

SVT1040SA

Manufacturer:

Silan Microelectronics

File Size:

278.93 KB

Description:

N-channel mosfet.
