SVT120N08S 80V N-CHANNEL MOSFET

SVT120N08T/S is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widely used .

SVT120N08S Features

* 120A,80V, RDS(on)(typ.)=7mΩ@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVT120N08T SVT120N08S SVT120N08STR Package TO-220-3L TO-263-2L TO-263-2L Marking 120N08T 120N08S 120N08S Hazardous Substance Control

SVT120N08T-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVT120N08S, SVT120N08T. Please refer to the document for exact specifications by model.

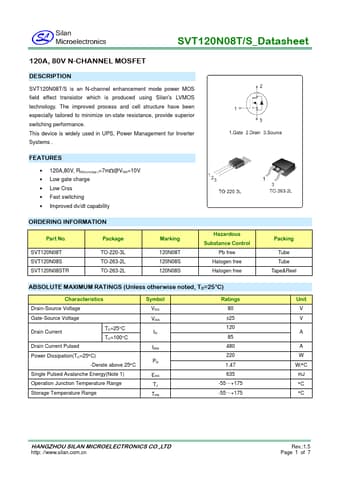

SVT120N08S Datasheet Preview Page 2 SVT120N08S Datasheet Preview Page 3

Datasheet Details

Part number:

SVT120N08S, SVT120N08T

Manufacturer:

Silan Microelectronics

File Size:

241.85 KB

Description:

80v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVT120N08S, SVT120N08T.
Please refer to the document for exact specifications by model.
