SVT03100NL3

N-CHANNEL MOSFET

SVT03100NL3 Features

* 45A, 30V, RDS(on)(typ.)=8.5m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability S1 S2 S3 G4 8D 7D 6D 5D 65 87 8 7 6 5 1 2 3 4 4 3 2 1 PDFN-8-3.3X3.3X0.75-0.65 ORDERING INFORMATION Part No. SVT03100NL3TR Package PDFN-8-3.3x3.3x0.75-0.65

SVT03100NL3 General Description

The SVT03100NL3 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widely u.

SVT03100NL3 Datasheet (259.69 KB)

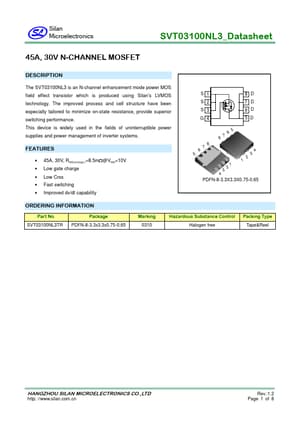

Preview of SVT03100NL3 PDF

Datasheet Details

Part number:

SVT03100NL3

Manufacturer:

Silan Microelectronics

File Size:

259.69 KB

Description:

N-channel mosfet.
