SVT03110PL3

P-CHANNEL MOSFET

SVT03110PL3 Features

* -46A, -30V, RDS(on)(typ.) =7.0m@VGS=-10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant S1 S2 S3 G4 8D 7D 6D 5D 8 7 6 5 65 7 8 1 2 3 4 4 3 2 1 PDFN-8-3.3×3.3×0.75-0.65

SVT03110PL3 General Description

SVT03110PL3 is a P channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown t.

SVT03110PL3 Datasheet (329.12 KB)

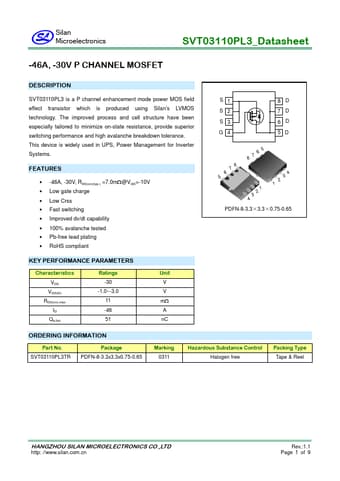

Preview of SVT03110PL3 PDF

Datasheet Details

Part number:

SVT03110PL3

Manufacturer:

Silan Microelectronics

File Size:

329.12 KB

Description:

P-channel mosfet.
