SVT03380PSA

P-CHANNEL MOSFET

SVT03380PSA Features

* -6.5A，-30V，RDS(on)(typ.) =24m@VGS=-10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant SOP-8-225-1.27 KEY PERFORMANCE PARAMETERS Characteristics VDS VGS(th) RDS(on),max ID

SVT03380PSA General Description

SVT03380PSA is a P channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown t.

SVT03380PSA Datasheet (335.57 KB)

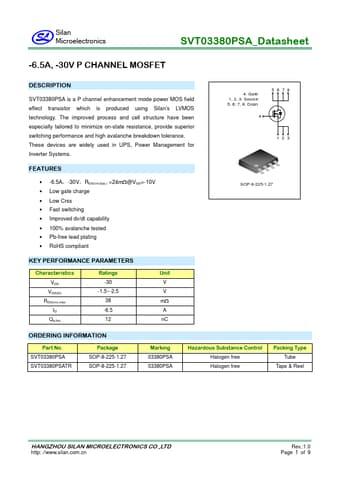

Preview of SVT03380PSA PDF

Datasheet Details

Part number:

SVT03380PSA

Manufacturer:

Silan Microelectronics

File Size:

335.57 KB

Description:

P-channel mosfet.
