SC3788 - SIX DIGITS MULTIPLEXED LCD WATCH CMOS

Product Overview

Silan Semiconductors

📥 Download Datasheet

SC3788 SIX DIGITS MULTIPLEXED LCD WATCH CMOS by Silan Semiconductors - Datasheet Preview — Datasheet preview – SC3788

Datasheet Details

Part number	SC3788
Manufacturer	Silan Semiconductors
File Size	202.28 KB
Description	SIX DIGITS MULTIPLEXED LCD WATCH CMOS
Datasheet	SC3788 Datasheet

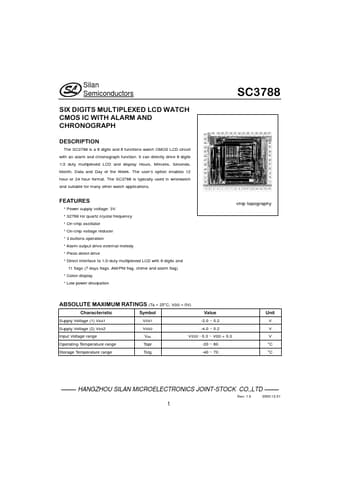

Additional preview pages of the SC3788 datasheet.

Product details

Description

The SC3788 is a 6 digits and 6 functions watch CMOS LCD circuit with an alarm and chronograph function.

Features

Power supply voltage: 3V.
32768 Hz quartz crystal frequency.
On-chip oscillator.
On-chip voltage reducer.
3 buttons operation.
Alarm output drive external melody.
Piezo direct drive.
Direct interface to 1/2-duty multiplexed LCD with 6 digits and 11 flags (7 days flags, AM/PM flag, chime and alarm flag).
Colon display.
Low power dissipation SC3788 40 39 38 37 36 35 34 33 32 31 30 29 28 27 41 42 43 26 44 25 45 24 46 23 47 22 48 21 49 20 50 19 51.
