SC9200, SC9200A Datasheet - Silan Semiconductors

SC9200 - DTMF GENERATORS

The SC9200 tone generators are designed for µC interfaces.

They can be instructed by a µC to generate 16 dual tones and 8 single tones from the DTMF pin.

The SC9200A/AS provides a serial mode whereas the SC9200B/BS contains a selectable serial/parallel mode interface for various applications DIP-8

SC9200 Features

* Operating voltage: 2.0V~5.5V

* Serial mode for the SC9200A/AS

* Serial/parallel mode for the SC9200B/BS

* Low standby current

* Low total harmonic distortion

* 3.58MHz crystal or ceramic resonator APPLICATIONS

* Security systems

* Home automation

* Remote contro

SC9200A-SilanSemiconductors.pdf

This datasheet PDF includes multiple part numbers: SC9200, SC9200A. Please refer to the document for exact specifications by model.

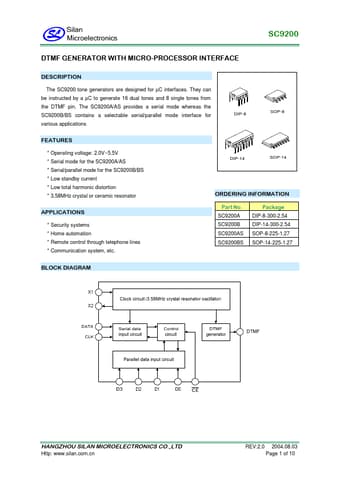

SC9200 Datasheet Preview Page 2 SC9200 Datasheet Preview Page 3
