SC9200A DTMF GENERATORS

The SC9200 tone generators are designed for µC interfaces. They can be instructed by a µC to generate 16 dual tones and 8 single tones from the DTMF pin. The SC9200A/AS provides a serial mode whereas the SC9200B/BS contains a selectable serial/parallel mode interface for various applications DIP-8 .

SC9200A Features

* Operating voltage: 2.0V~5.5V

* Serial mode for the SC9200A/AS

* Serial/parallel mode for the SC9200B/BS

* Low standby current

* Low total harmonic distortion

* 3.58MHz crystal or ceramic resonator APPLICATIONS

* Security systems

* Home automation

* Remote contro

SC9200A-SilanSemiconductors.pdf

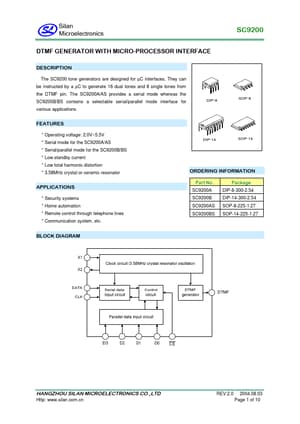

SC9200A Datasheet Preview — Preview of SC9200A PDF

Datasheet Details

Part number:

SC9200A

Manufacturer:

Silan Semiconductors

File Size:

182.19 KB

Description:

Dtmf generators.
