SC9201UA-L Datasheet - Semiment

SC9201UA-L - Self-Adjusting Hall-Effect Gear Tooth Sensor

The SC9201 is a sophisticated IC featuring an on-chip 10-bit A/D Converter and logic that act as a digital sample and hold circuit.

A separate 4-bit D/A converter provides a fixed hysteresis.

The SC9201 does not have a chopper delay and uses a single Hall plate which is immune to rotary alignment pr

SC9201UA-L Features

* Zero speed detection

* Insensitive to orientation

* Self-adjusting magnetic range

* Short circuit protection

* 3.0 to 24V supply operating range

* Wide operating temperature range

* Output protection against electrical disturbances

* RoHs compliant SC9201 123 Not t

SC9201UA-L-Semiment.pdf

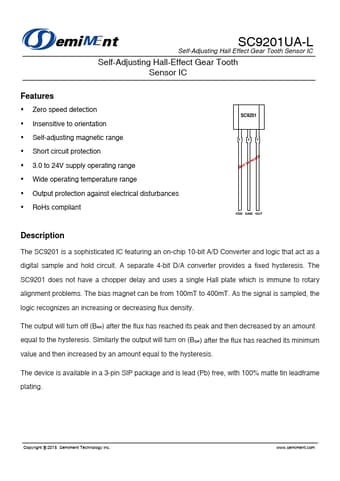

Preview of SC9201UA-L PDF
SC9201UA-L Datasheet Preview Page 2 SC9201UA-L Datasheet Preview Page 3

Datasheet Details

Part number:

SC9201UA-L

Manufacturer:

Semiment

File Size:

348.87 KB

Description:

Self-adjusting hall-effect gear tooth sensor.
