SC9625 - High Sensitivity Differential Speed Sensor

SC9625 Description

SC9625 Differential Hall Effect Speed Sensor IC High Sensitivity Differential Speed Sensor IC .
The differential Hall Effect sensor SC9625 provides a high sensitivity and a superior stability over temperature and symmetrical thresholds in order t.

SC9625 Features

* Integrated filter capacitor
* South and North pole pre-induction possible
* Larger air gap
* 3.8 to 24V supply operating range
* Wide operating temperature range
* Output compatible with both TTL and CMOS logic families
* Over-voltage protection in all PINs
* Revers

SC9625 Applications

* of ferromagnetic toothed wheels, such as, anti-lock braking systems, transmissions, crankshafts, etc. The device is packaged in a 4-pin plastic SIP. It is lead (Pb) free, with 100% matte tin plated leadframe Copyright © 2015 Semiment Technology Inc. www. semiment. com SC9625 High Sensitivity Differ

📥 Download Datasheet

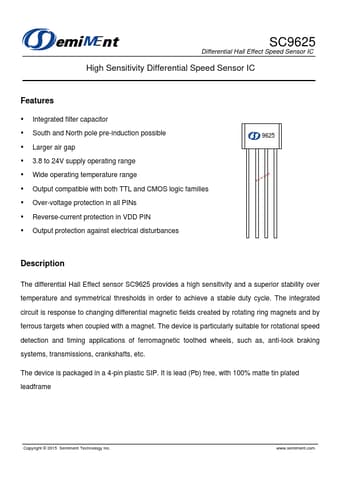

Preview of SC9625 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC9625
Manufacturer
Semiment
File Size
362.45 KB
Datasheet
SC9625-Semiment.pdf
Description
High Sensitivity Differential Speed Sensor
