SC9621 - High Accuracy Differential Speed Sensor

SC9621 Description

SC9621 www.semiment.com High Accuracy Differential Speed Sensor IC with Zero-Crossing Output Signal .
The differential Hall Effect sensor SC9621 provides a high sensitivity and a superior stability over temperature and symmetrical thresholds in order t.

SC9621 Features

* Integrated filter capacitor
* Accurate true zero-crossing switch-point
* South and North pole pre-induction possible
* Large air gap
* 3.8 to 24V supply operating range
* -40℃-150℃ temperature range
* Protection against over-voltage in all PIN
* Reverse-current prot

SC9621 Applications

* of ferromagnetic toothed wheels, such as, anti-lock braking systems, transmissions, crankshafts, etc. The device is packaged in a 4-pin plastic SIP. It is lead (Pb) free, with 100% matte tin plated lead frame. Rev. A/1.0 Semiment Technology Inc. www. semiment. com SC9621 Dual Quadrature Outputs Sp

📥 Download Datasheet

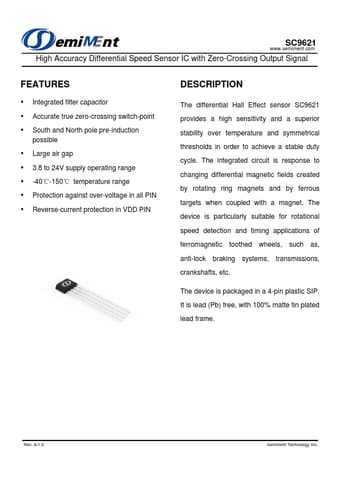

Preview of SC9621 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC9621
Manufacturer
Semiment
File Size
294.51 KB
Datasheet
SC9621-Semiment.pdf
Description
High Accuracy Differential Speed Sensor
