SC9608 - 15W Wireless Power Transmitter SOC

SC9608 Description

SOUTHCHIP SEMICONDUCTOR SC9608 DATASHEET DRAFT SOUTHCHIP CONFIDENTIAL, SUBJECT TO CHANGE 15W Wireless Power Transmitter SOC 1 .
The SC9608 is a highly integrated wireless power transmitter SOC solution that contains both digital microcontroller and analog front end (AFE).

SC9608 Features

* 4.0V to 14.0V AVIN input voltage range
* 2.0V to 14.0V PVIN input voltage range
* Support up to 15W output power
* Integrated voltage and current demodulation
* Integrated low RDSON power FETs
* Integrated FET driver and bootstrap circuit
* Integrated accurate current s

SC9608 Applications

* WPC Compliant Wireless Power Transmitter
* Proprietary Wireless Chargers and Transmitter 4 Device Information Part Number SC9608QFER Package FCQFN25 Dimension 4mm x 4mm x0.75mm Copyright © 2019, Southchip Semiconductor Technology (Shanghai) Co. , Ltd. 1 SOUTHCHIP SEMICONDUCTOR Revis

📥 Download Datasheet

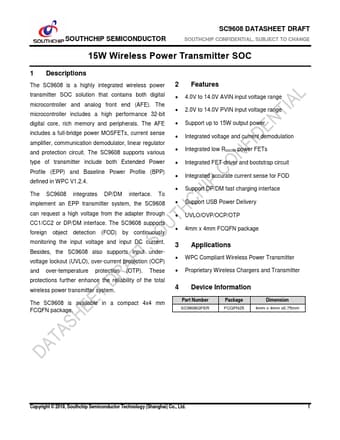

SC9608 Datasheet Preview — Preview of SC9608 PDF

Datasheet Details

Part number: SC9608
Manufacturer: SOUTHCHIP
File Size: 1.02 MB
Datasheet: SC9608-SOUTHCHIP.pdf
Description: 15W Wireless Power Transmitter SOC
