SC9314 - Self-Adjusting Hall-Effect Gear Tooth Sensor

Product Overview

Semiment

📥 Download Datasheet

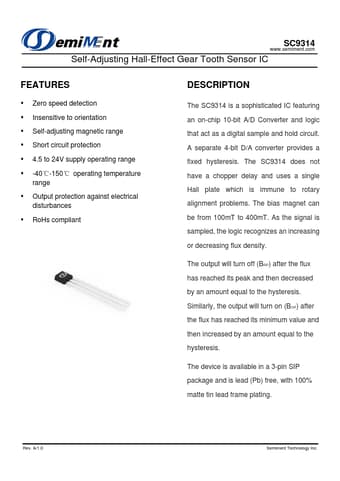

SC9314 Self-Adjusting Hall-Effect Gear Tooth Sensor by Semiment - Datasheet Preview — Datasheet preview – SC9314

Datasheet Details

Part number	SC9314
Manufacturer	Semiment
File Size	286.30 KB
Description	Self-Adjusting Hall-Effect Gear Tooth Sensor
Datasheet	SC9314 Datasheet
Additional preview pages of the SC9314 datasheet.

Product details

Description

The SC9314 is a sophisticated IC featuring an on-chip 10-bit A/D Converter and logic that act as a digital sample and hold circuit.

Features

Zero speed detection.
Insensitive to orientation.
Self-adjusting magnetic range.
Short circuit protection.
4.5 to 24V supply operating range.
-40℃-150℃ operating temperature range.
Output protection against electrical disturbances.
RoHs compliant.
