SLG5NT1437V - Ultra-small 4A Load Switch

Silego

📥 Download Datasheet

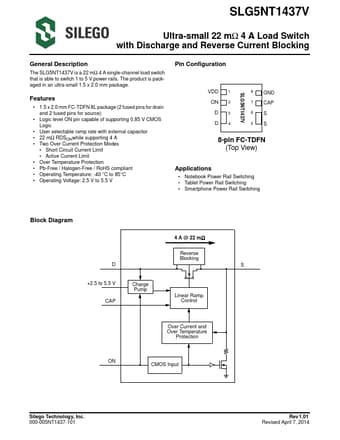

SLG5NT1437V Datasheet Preview — Preview of SLG5NT1437V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SLG5NT1437V
Manufacturer	Silego
File Size	117.15 KB
Description	Ultra-small 4A Load Switch
Datasheet	SLG5NT1437V-Silego.pdf

SLG5NT1437V Product details

Description

The SLG5NT1437V is a 22 mΩ 4 A single-channel load switch that is able to switch 1 to 5 V power rails.

Features

1.5 x 2.0 mm FC-TDFN 8L package (2 fused pins for drain and 2 fused pins for source).
Logic level ON pin capable of supporting 0.85 V CMOS Logic.
User selectable ramp rate with external capacitor.
22 mΩ RDSONwhile supporting 4 A.
Two Over Current Protection Modes.
Short Circuit Current Limit.
Active Current Limit.
Over Temperature Protection.
Pb-Free / Halogen-Free / RoHS compliant.
Operating Temperature:.
