SY22309AS22-J01, 21-bit Dynamic Range True Ambient Light Sensor

SY22309AS22-J01 21-bit Dynamic Range True Ambient Light Sensor with Clear channel and High Speed I2C Interface General .
The SY22309AS22-J01 device, an ambient light sensor (ALS) with clear channel, features high sensitivity, wide dynamic range and fast communication spe.

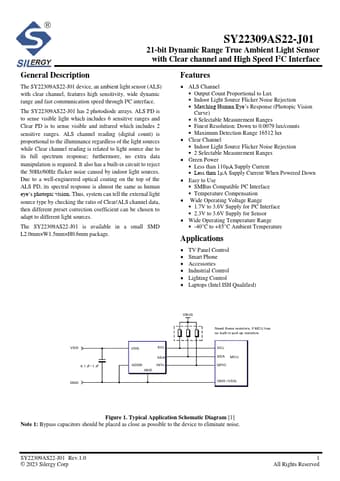

datasheet Preview Page 1 from Datasheet4u.com

SY22309AS22-J01-Silergy.pdf

SY22309AS22-J01 Datasheet Preview — Preview of SY22309AS22-J01 PDF

Datasheet Details

Part number:

SY22309AS22-J01

Manufacturer:

Silergy

File Size:

1.13 MB

Description:

21-bit Dynamic Range True Ambient Light Sensor

Features

* high sensitivity, wide dynamic range and fast communication speed through I²C interface. The SY22309AS22-J01 has 2 photodiode arrays. ALS PD is to sense visible light which includes 6 sensitive ranges and Clear PD is to sense visible and infrared which includes 2 sensitive ranges. ALS channel readin

Applications

* TV Panel Control
* Smart Phone
* Accessories
* Industrial Control
* Lighting Control
* Laptops (Intel ISH Qualified) VDD 0.1μF~1μF GND VBUS VDD SCL SDA ADDR INTn GND Need these resistors, if MCU has no built-in pull-up resistors SCL SDA MCU GPIO GND (VSS) Figure 1
